Nordic Planed Timber

Standard is a to approx. 18 % kiln-dried timber including IPPC treatment

Finished sizes:
from 15 x 33 mm to approx. 72 x 245 mm accroding to you requirements

Lengths:
2,70 m to 5,10 / 5,40 m possibly also longer

Category of Cutting:
- sidings
- one ex log
- two ex log
- three ex log

Qualities:
- VIa. and better
- Va. and better
- u/s

Type of Wood:
- spruce/fir
- pine

Finishing:
- equalizing
- planing
- exact cut in the length (precise in mm)
- dipping method impregnation
- pressure boiler impregnation
- bundling

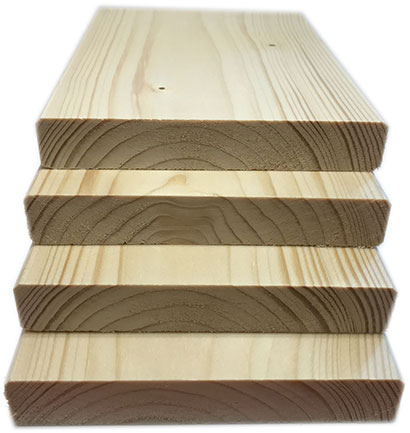

gehobelte, nordische Glattkantbretter 21x210mm

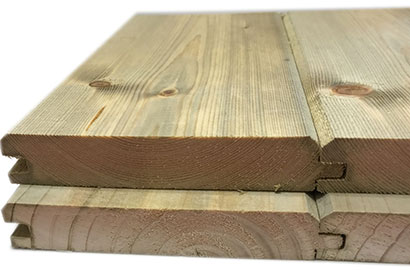

nordische Fasebretter, getrocknet und imprägniert 22,5 x 121

Usual dimensions for equalized timber (VIa. and better):

raw measure (kiln-dried)	finished size, for example:
19 x 100 mm	18,5 x 96 mm
19 x 125 mm	18,5 x 121 mm

22 x 100 mm	21 x 96 mm
22 x 125 mm	21 x 121 mm
22 x 150 mm	21 x 146 mm

25 x 150 mm	24x 121 mm

32 x 100 mm	28,5 x 96 mm
32 x 125 mm	28,5 x 121 mm
32 x 150 mm	28,5 x 146 mm

Usual dimensions for equalized laths:

raw measure (kiln-dried)	finished size, for example:
19 x 100 mm	18 x 45 mm
19 x 125 mm	18 x 58 mm

22 x 75 mm	71 x 72 mm
22 x 100 mm	21 x 45 mm
22 x 125 mm	21 x 60 mm
22 x 150 mm	21 x 75 mm

25 x 125 mm	24 x 60 mm
25 x 150 mm	24 x 72 mm

38 x 125 mm	37 x 57 mm
40 x 125 mm	38 x 58 mm

Usual dimensions/products for planed timber out of the main timber goods (Va. and better):

- egde-shot boards DIN 68127

- profiled timber DIN 68126

- profiled timber with phase DIN 68122

- floor boads

raw measure (kiln-dried)
47 x 100 - 125 - 150	for example: 2 x 19 x 146 mm edge-shot boards
50 x 100 - 125 - 150 - 175 - 200	for example: 2 x 22 x 121mm boards with phase
63 x 125 - 150 - 175 - 200	for example: 2 x 27 x 121 mm boards with phase
75 x 175 - 200 - 225 - 250

Not all classes of cutting, dimensions, lengths and finishings are possible for all types of wood.
